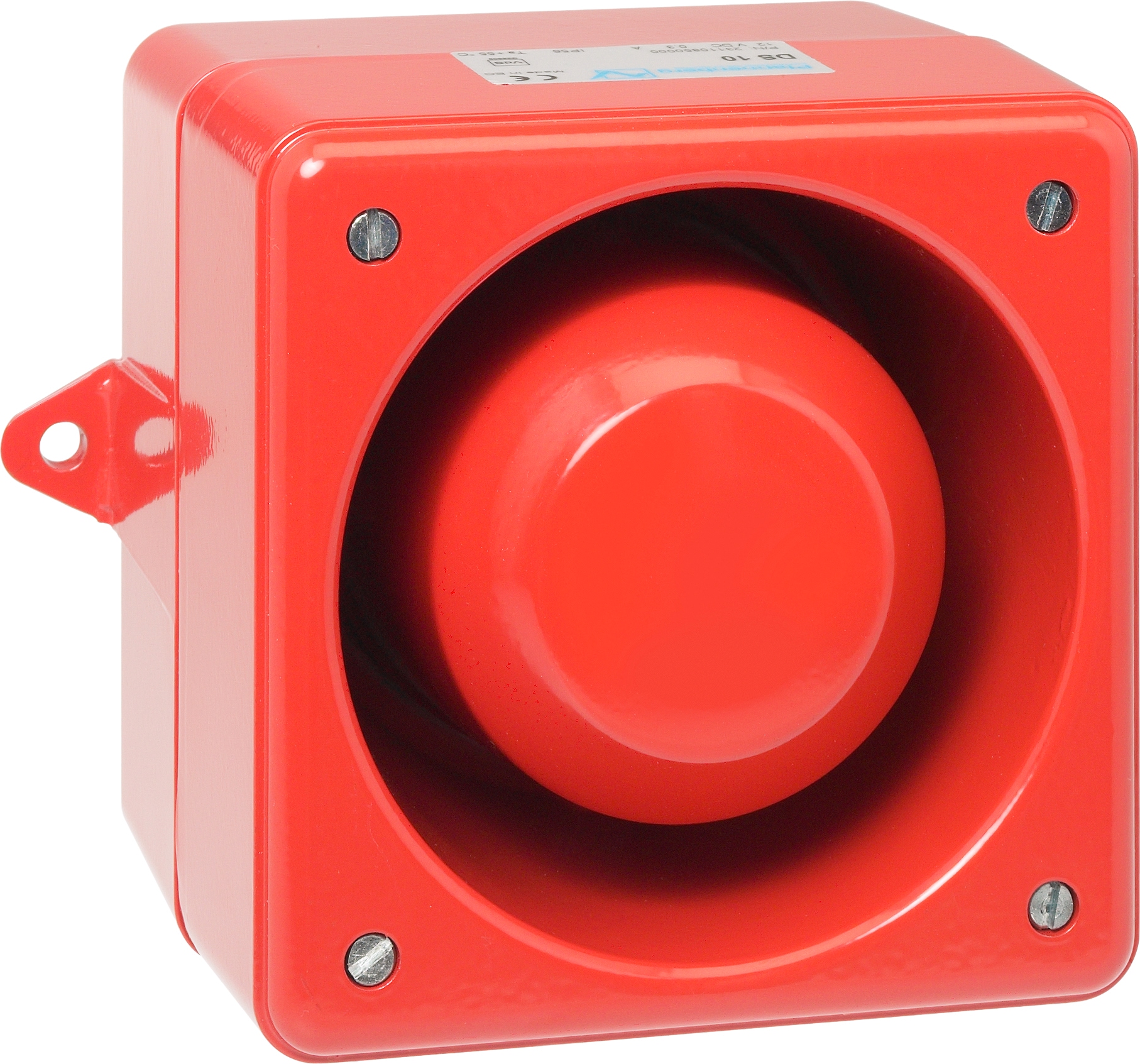

Ex signaling device DS10, 12 V DC

045040

Approval: VdS (FDT)

The sound generator is especially suitable for hazardous industrial areas (zone 2 and 22). The robust aluminum die-cast housing is resistant to chemicals and environmental factors. The DS10 complies with the technical requirements of DIN 33404 - 3 "hazard signals for workplaces

9 tone sequences can be programmed:
Continuous tone
Alternating tone
Intermittent tone
Siren
Fire alarm (different national regulations taken into account)

Additional Information:
According to the conformity declaration, the alarm devices can be used in zones 2 and 22.

See tone table on our download website.

Operating voltage	11 ... 14 V DC 10 V DC
Ex-category	II 3GD
Explosion protection	EEx nA II T5
Color	red, similar to RAL 3000
Weight kg	approx. 1.95 kg
Storage temperature	-40 °C ... 70 °C
Material	aluminum die cast
Air humidity	< 90 % (non-condensing)
Type of protection	IP 66, IP 67
Specification	EN 54-3
Current consumption @ 12 V DC	approx. 300 mA
Ambient temperature	-25 °C ... 55 °C
Dimensions	W: 150 mm H: 150 mm D: 143 mm
